| Specification |
QD610 |
| Thermal Module |
| Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Pixel Pitch |
17 μm |
| NETD |
< 35 mK (25 °C, F# = 1.0) |
| Focus Mode |
7 mm: Athermalized
15 mm: Semi-auto & Manual |
| IFOV |
7 mm: 2.4 mrad
15 mm: 1.1 mrad |
| Field of View |
7 mm
640×512 : 90.4° × 75°
384×288 : 55.8° × 42.1°15 mm
640×512 : 45° × 36.1°
384×288 : 26.8° × 20.3° |
| Min. Focusing Distance |
7 mm : 0.5 m
15 mm : 0.15 m |
| Aperture |
7 mm : F1.0
15 mm : F1.0 / F2.7 |
| Focal Length |
7 mm / 15 mm |
| Resolution |
640 × 512 |
| Measurement & Analysis |

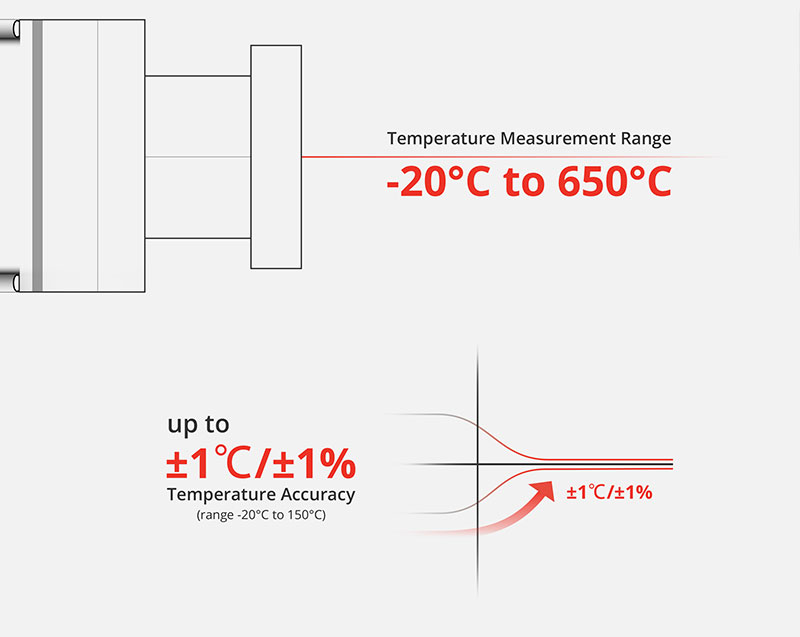

| Object Temperature Range |
7 mm
-20°C ~ 150°C
0°C ~ 650°C15 mm
-20°C ~ 150°C
0°C ~ 650°C
300°C ~ 2000°C |
| Measurement Presets |
Hot spot, Cold spot in real time |
| Point |
10 User Presets |
| Line |
1 User Preset |
| Area |
10 User Presets |
| Color Alarm (Isotherm) |
Above / Between / Below |
| Temperature Accuracy |
7 mm
-20~100°C : ±1°C
100~150°C : ±1%
0~100°C : ±2°C
100~650°C : ±2%15 mm
-20~100°C : ±1°C
100~150°C : ±1%
0~100°C : ±2°C
100~650°C : ±2%
300~2000°C : ±2% |
| General |
| Power Consumption |
7 mm : 4.2 W Max
15 mm : 6.4 W Max |
| Protection Level |
IP42 |
| Weight |
7 mm : Approx. 342 g (0.75 lb.)
15 mm : Approx. 910 g (2 lb.) |
| Mount |
M3 |
| Power Supply |
12–24 VDC |
| Material |
Aluminum Alloy |
| Working Temperature / Humidity |
-20°C to 50°C (-4°F to 122°F)
≤90% RH |
| Dimensions |
7 mm : 103.5 × 50 × 50 mm
15 mm : 121.7 × 74 × 72 mm |
| Menu Language |
English |
| Video & Image |

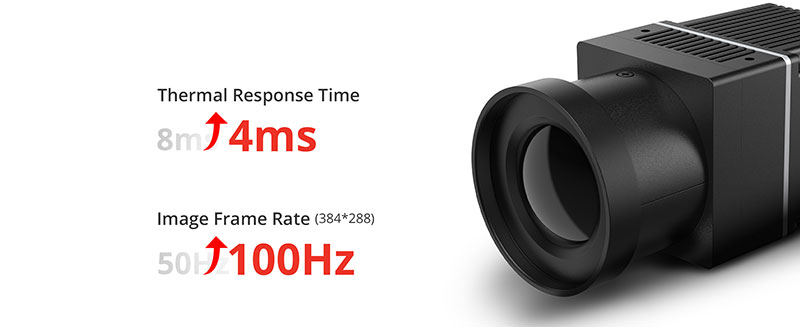

| Main Stream |
50 fps (640×512)
100 fps (384×288) |
| Video Compression |
H.265 / H.264 / MJPEG |
| Color Palettes |
White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2,
Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2,
Ice Fire, Rain, Red Hot, Green Hot, Dark Blue |
| Digital Zoom |
×2, ×4, ×8 |
| Radiometric Capture |
Yes |
| Radiometric Infrared Video Streaming |
RJ45, 640×512 @50fps, 384×288 @100fps |
| Network |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| Protocols |
IPv4 / IPv6 / HTTP / HTTPS / FTP / SMTP / RTSP / RTP / TCP / UDP / DHCP / PPPoE / SNMP / NTP / SFTP / SRTP and more |
| API |
MODBUS, ISAPI, Network SDK, ONVIF (Profile S / G) |
| Simultaneous Live View |
Up to 20 channels |
| User / Host Level |
Up to 32 users (Administrator / Operator / User) |
| Security |
User Authentication, MAC Binding, HTTPS Encryption,
IEEE802.1x, Access Control, IP Filtering,
Illegal Login Detection, HDD Full/Error,
Network Disconnected |
| Client |
HIKMICRO Analyzer |

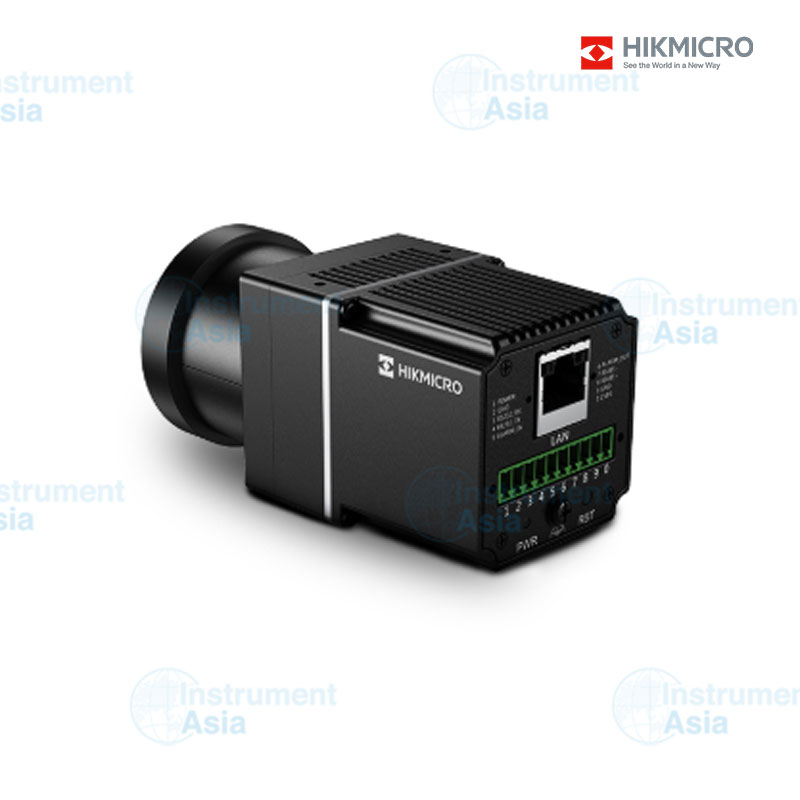

| Interface |
| Communication Interface |
RJ45 10/100/1000 Ethernet
RS-485 (ModBus) |
| Alarm Input |
1 × Alarm Input (0–3.3 VDC) |
| Alarm Output |
1 × Alarm Output (NC, External Relay Required) |
| Alarm Action |
Preset / Patrol Scan / Alarm Record /
Relay Output / Smart Capture /
FTP Upload / Email Linkage |
| Analog Output |
1 × CVBS Output |
