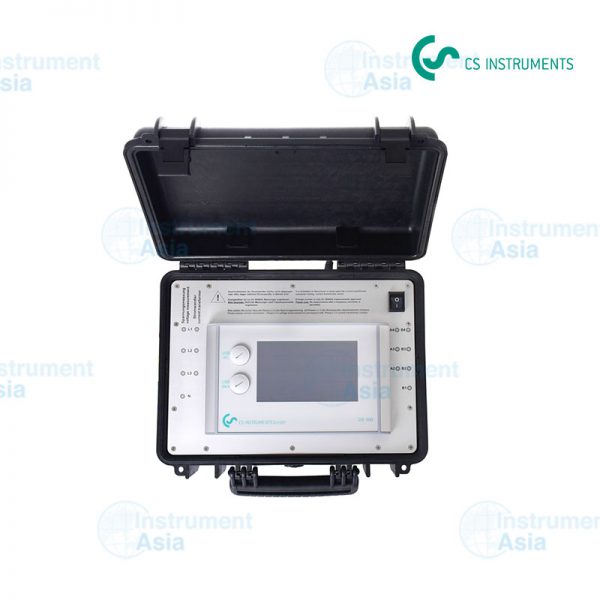

DS 500 PM mobile

All-in-one measurement: electrical energy, pressure, dew point, temperature and con- sumption


DS 500 PM mobile – efficiency measurement for compressors
All-in-one measurement: electrical energy, pressure, dew point, temperature and con- sumption

Besides common measurements such as compressed air consumption or humidity, even more complex measurement tasks can be tackled with this all-round mobile device. With the DS 500 PM mobile, conducting an energy analysis according to DIN ISO 50001 is child’s play.

Special features DS 500PM mobil:
• Magnetic voltage measuring tips for picking off the voltage during operation.

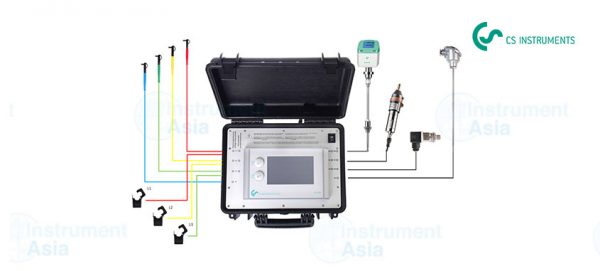

• Hinged current transformers encompass the conductors of phases L1, L2, L3. Can also be used during operation.

For universal use:
Up to 11 devices can be connected, including third-party sensors incl. power supply

Reliably stores all measured values on a memory card. Easy readout possible via USB stick

Energy analysis according to DIN ISO 50001:
• Costs in EUR ($) per m³ (cubic foot) air generated
• Specific output in kWh / m³ (cubic foot)
• Consumption of single lines including summation

  Case dimensions   360 x 270 x 150 mm
  Weight   4.5 kg
  Material   Diecast, front foil polyester, ABS
  Sensor inputs   3/7/11 sensor inputs for analogue and digital sensors; freely allocatable. See options
  Digital CS sensors for dew point and consumption with FA/VA series SDI interface,
  RS 485/Modbus RTU digital third-party sensors.
  Analogue CS Sensors for pressure, temperature, clamp-on ammeters preconfigured.
  Analogue third-party sensors 0/4...20 mA, 0...1/10/30 V, pulse, Pt 100/Pt 1000, KTY
  Voltage supply for sensors   24 VDC, max. 130 mA per sensor, integrated mains unit, max. 24 VDC, 25 W.
  For 8/12 sensor input version: 2 integrated mains units, each max. 24 VDC, 25 W
  Interfaces   USB stick, Ethernet/RS 485 Modbus RTU/TCP, SDI (other bus systems on request),
  webserver optional
  Memory card   Micro SD memory card, memory size 8 GB
  Power supply   100…240 VAC, 50-60 Hz
  Colour display   TFT transmissive 7" touch panel, graphics, curves, statistics
  Accuracy   Please see sensor specifications
  Operating temperature:   0…50° C
  Storage temperature:   -20…70° C


Download File : Data_sheet_DS500PM_mobile_EN
