Mini3R

The Mini3R Thermal Imager is a product suite that complements Hikmicro’s acoustic imaging camera.

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0

Description

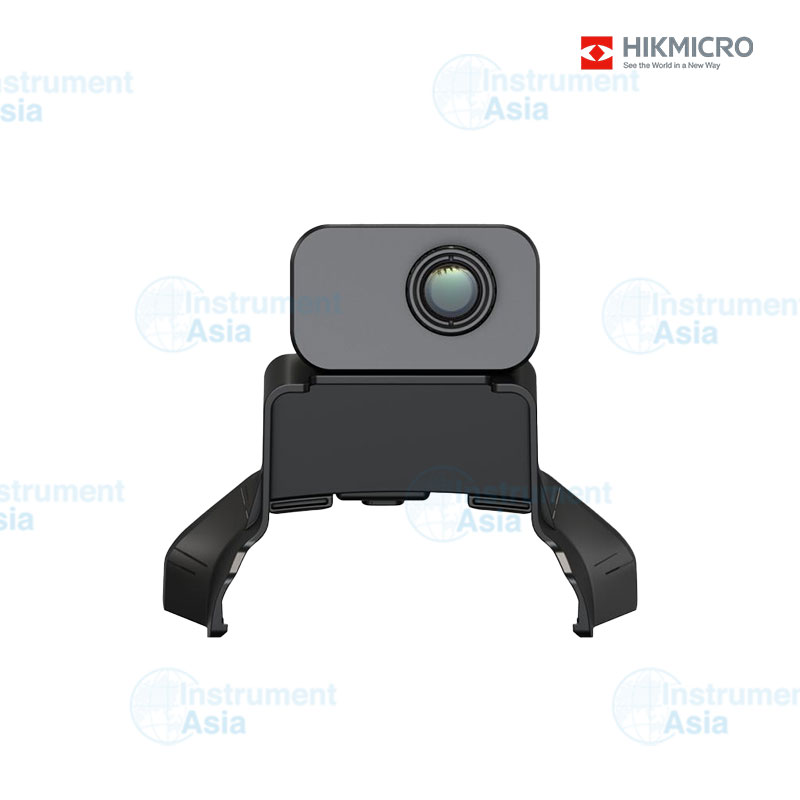

The Mini3R Thermal Imager is a product suite that complements Hikmicro’s acoustic imaging camera. Featuring a 384×288 IR resolution, it enables full-screen infrared temperature detection with high accuracy. Its adjustable insertion direction and rotable lens for focus adjustment allow seamless integration with the acoustic imading camera, offering engineers a professional, dual-function solution for infrared and acoustic imaging detion.

Key Features

  • IR Resolution : 384× 288 (110,592 pixels)
  • NETD: ≤ 35 mK (@ 25 °C, F#=1.0)
  • Accuracy: Max (± 2°C/3.6°F, ± 2%)
  • USB-C Interface
  • 145 g Weight

Infrared Image
IR Resolution 384× 288 (110,592 pixels)
NETD ≤35 mK (@ 25 °C, F#=1.0)
Image Frequency 25Hz
Detector Pitch 12μm
Spectral Range 7.5 to 14 μm
Focal Length 10mm
F-number F1.0
Field of View (FOV) 26° × 19°
Min. Focus Distance 0.3 m (0.98 ft)
Focus Mode Manual Focus
Measurement and Analysis
Object Temperature Range -20°C to 650°C(-4°F to 1202°F )
Accuracy Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F)
and object temperature above 0°C (32°F)
Measurement Tools Center Spot, Hot Spot, Cold Spot
Level and Span Mode Auto/Manual
General
Power Consumption 550 mW
Interface USB-C
Protection Level IP54
Drop Test Height 1 m (3.28 ft)
Working Temperature Range -20°C to 50°C (-4°F to 122°F )
Storage Temperature Range -20°C to 60°C (-4°F to 140°F )
Weight Approx. 145 g (0.32 lb)

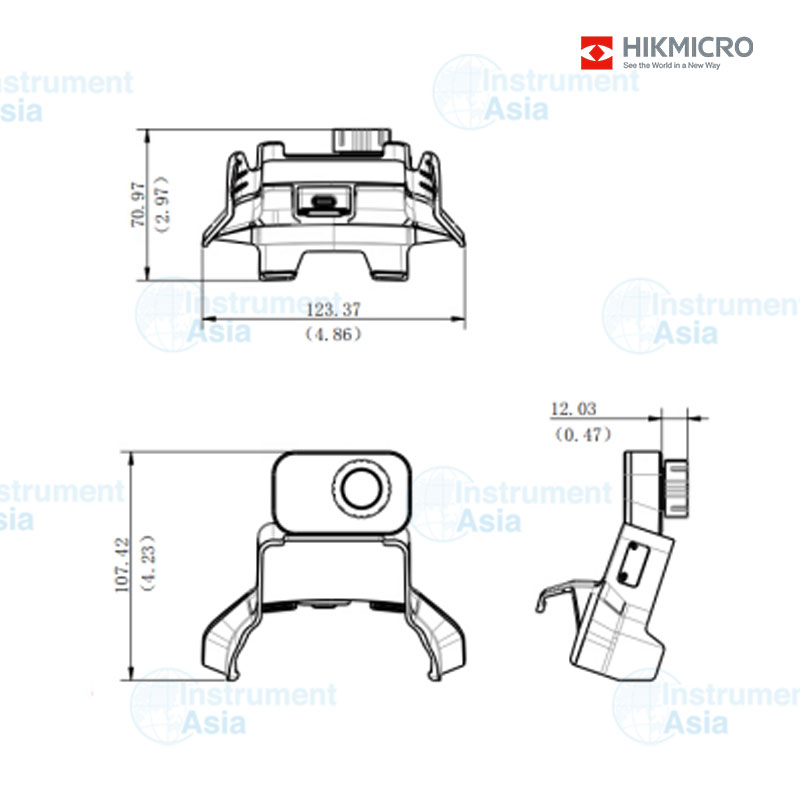

Dimension 123.37× 107.57 × 63.09 mm (4.86 × 4.24 × 2.48 in)
