Hikmicro SP Series – กล้องถ่ายภาพความร้อน (Thermoscan) 640 x 480

Thermal resolution: 640 x 480 (307, 200 pixels) Field of View: L8: 77.4 mm, L12: 51.4 mm, L25: 25.0 mm, L50: 12.6 mm

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0

Description

SP SERIES
Ultra-high performance and maximum flexibility

SuperIR
Powered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting.

One-second fast focusing
Support for 5 focus modes (Laser-Assisted AF, Continuous AF, AF, Manual Focus, Touch AF) with a fast focus speed of 1 second to match your workflow, optimize image clarity, and ensure measurement accuracy.

Flexible Rotating Lens and Screen
Equipped with a 90° rotating screen and 180° rotating lens design, the SP series makes it easy to view the area around, between, above, or below the target while maintaining a safe working distance.

OLED Viewfinder
The SP60/60H integrates a cutting-edge 1024×768 OLED viewfinder that greatly enhances contrast even in bright outdoor settings. This essential feature equips thermographers with the ability to concentrate on their work and stay steady while analyzing distant objects.

Rugged, Durable, Designed for Outdoors
The entire SP Series is built to withstand water and dust intrusion to IP54 standards and is drop tested to 1 meter. Its 5” 1280×720 touchscreen dynamically adapts to surrounding light conditions and displays vivid and clear details even in direct sunlight.

Up to 2200°C Temperature Range with SP40H/SP60H
Expand beyond the SP40/60 standard range of -20°C to 650°C (-4°F to 1202°F) for building, electrical, or mechanical work to an industry leading -40°C to 2200°C (-40°F to 3992°F) found in the SP40H/SP60H for high-temperature industrial use.

Extensive Range of Interchangeable Lenses
Interchangeable lenses allow you to pick the field of view for your inspections. Different lenses have different fields of view, giving you more options for different scenarios to see and capture more detailed images and to measure small problems more accurately.

Precise, Flexible, Stable Microscope Stand
Paired with a macro lens, it transforms into a thermal imaging microscope suitable for scenarios requiring temperature observation of tiny details. Connect with HIKMICRO Analyzers for real-time viewing and analysis.

Continuous Digital Zoom
1.0x to 12.0x continuous digital zoom provides more image details.

1-Tap Level & Span
Focus on the area of the image you are interested in by narrowing the span with 1-Tap of the screen.

Complete Image Annotations
Quickly annotate your images with voice, text or QR codes. Add GPS and compass direction to outdoor images to include geolocation data.

Multiple Image Annotations
Text or audio annotations within the images instead of taking notes by hand,
helping to improve inspection efficiency and productivity.

Embedded Laser Distance Meter
An integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating the report.

5 Image Modes
Thermal, Fusion, PIP, Blending and Visual modes to suit your preference.

Interchangeable Battery System
Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 8 hours of operation.
You can stay powered up for even the longest inspections.

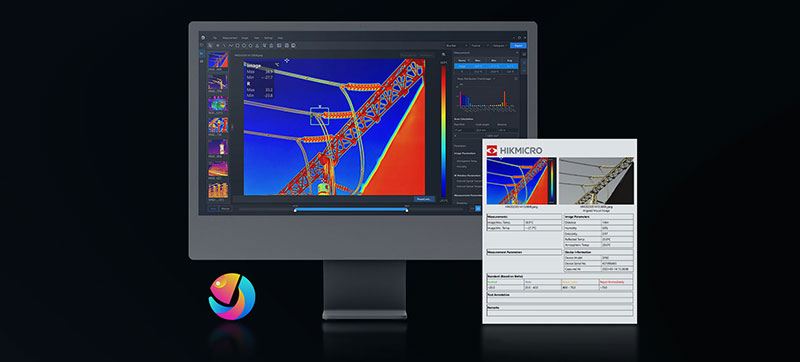

Radiometric Video Analysis
Supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO Analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.

Conveniently Share Images and Reports
Connect HIKMICRO Viewer App via Wi-Fi to transfer photos or videos from camera to mobile device.
Analyze, share images, and generate reports in real-time on-site.

What’s in the Box

ตัวแทนจำหน่าย HIKMICRO อย่างเป็นทางการ พร้อมศูนย์บริการ HIKMICRO Authorized Service Center แห่งเดียวในประเทศไทย

ดูแลโดยทีมวิศวกรผู้เชี่ยวชาญ

  • Calibration
  • Maintenance
  • Technical Support

ติดต่อผู้เชี่ยวชาญเพื่อขอคำแนะนำหรือสาธิตการใช้งานได้แล้ววันนี้
Line@: https://line.me/R/ti/p/%40instrumentasia
Tel: 02-779-8833 หรือ 095-950-6666
Shopee : https://shopee.co.th/instrumentasia
E-mail: info@instrumentasia.com

Specifications SP40 SP40H SP60 SP60H
Infrared Image
IR Resolution 480 × 360 (172,800 pixels) 480 × 360 (172,800 pixels) 640 × 480 (307,200 pixels) 640 × 480 (307,200 pixels)
SuperIR Yes, on captured images Yes, on captured images Yes, on captured images Yes, on captured images
NETD < 30 mK (@ 30 °C, F#=1.0) < 30 mK (@ 30 °C, F#=1.0) < 30 mK (@ 30 °C, F#=1.0) < 30 mK (@ 30 °C, F#=1.0)
Image Frequency 30 Hz 30 Hz 30 Hz 30 Hz
Detector Pitch 17 μm 17 μm 17 μm 17 μm
Spectral Range 7.5 to 14 μm 7.5 to 14 μm 7.5 to 14 μm 7.5 to 14 μm
Focal Length L6: 77.4 mm; L9: 51.4 mm; L19: 25.6 mm; L37: 12.6 mm L6: 77.4 mm; L9: 51.4 mm; L19: 25.6 mm; L37: 12.6 mm L8: 77.4 mm; L12: 51.4 mm; L25: 25.6 mm; L50: 12.6 mm L8: 77.4 mm; L12: 51.4 mm; L25: 25.6 mm; L50: 12.6 mm
F-number L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 L8: F1.2; L12: F1.1; L25: F1.0; L50: F1.0 L8: F1.2; L12: F1.1; L25: F1.0; L50: F1.0
Field of View (FOV) L6: 6° × 4.5°; L9: 9° × 6.8°; L19: 18.7° × 14°; L37: 37.3° × 27.8° L6: 6° × 4.5°; L9: 9° × 6.8°; L19: 18.7° × 14°; L37: 37.3° × 27.8° L8: 8° × 6°; L12: 12° × 9°; L25: 24.8° × 18.7°; L50: 50° × 37.3° L8: 8° × 6°; L12: 12° × 9°; L25: 24.8° × 18.7°; L50: 50° × 37.3°
Spatial Resolution (IFOV) L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.66 mrad; L37: 1.35 mrad L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.66 mrad; L37: 1.35 mrad L8: 0.22 mrad; L12: 0.33 mrad; L25: 0.66 mrad; L50: 1.35 mrad L8: 0.22 mrad; L12: 0.33 mrad; L25: 0.66 mrad; L50: 1.35 mrad
Min. Focus Distance L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.15 m (0.49 ft); L37: 0.15 m (0.49 ft) L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.15 m (0.49 ft); L37: 0.15 m (0.49 ft) L8: 2 m (6.56 ft); L12: 1 m (3.3 ft); L25: 0.15 m (0.49 ft); L50: 0.15 m (0.49 ft) L8: 2 m (6.56 ft); L12: 1 m (3.3 ft); L25: 0.15 m (0.49 ft); L50: 0.15 m (0.49 ft)
Focus Mode Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF
Focus Speed Approx. 1 second Approx. 1 second Approx. 1 second Approx. 1 second
Image Display
Visual Camera 3264 × 2448 (8 MP) 3264 × 2448 (8 MP) 3264 × 2448 (8 MP) 3264 × 2448 (8 MP)
Display 1280 × 720 Resolution, 5” LCD Touch Screen 1280 × 720 Resolution, 5” LCD Touch Screen 1280 × 720 Resolution, 5” LCD Touch Screen 1280 × 720 Resolution, 5” LCD Touch Screen
Screen Brightness Manual/Auto Manual/Auto Manual/Auto Manual/Auto
Viewfinder No No 1024 × 768 pixels OLED 1024 × 768 pixels OLED
Digital Zoom 1.x to 12.x continuous 1.x to 12.x continuous 1.x to 12.x continuous 1.x to 12.x continuous
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Focus Mode Palette Above/Below/Interval Above/Below/Interval Above/Below/Interval Above/Below/Interval
Color Alarm Above/Below/Interval/Insulation/Condensation Above/Below/Interval/Insulation/Condensation Above/Below/Interval/Insulation/Condensation Above/Below/Interval/Insulation/Condensation
Image Modes Thermal/Visual/Fusion/PIP/Blending Thermal/Visual/Fusion/PIP/Blending Thermal/Visual/Fusion/PIP/Blending Thermal/Visual/Fusion/PIP/Blending
Measurement and Analysis
Object Temperature Range Range 1: -20℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F) Range 1: -40℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F); Range 3: 300℃ to 2200℃ (572°F to 3992°F) Range 1: -20℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F) Range 1: -40℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F); Range 3: 300℃ to 2200℃ (572°F to 3992°F)
Accuracy Range 1: ±2℃ for -20 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C; Range 3: ±2% for 300 to 2200°C Range 1: ±2℃ for -20 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C; Range 3: ±2% for 300 to 2200°C
Measurement Tools Center Spot, Hot Spot, Cold Spot
User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles		 Center Spot, Hot Spot, Cold Spot
User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles		 Center Spot, Hot Spot, Cold Spot
User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles		 Center Spot, Hot Spot, Cold Spot
User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles
Level and Span Mode Auto/Manual/1-Tap Touch-Screen Auto/Manual/1-Tap Touch-Screen Auto/Manual/1-Tap Touch-Screen Auto/Manual/1-Tap Touch-Screen
Inspection Route Yes Yes Yes Yes
SuperScene+ Electrical Panel, PCB Inspection Electrical Panel, PCB Inspection Electrical Panel, PCB Inspection Electrical Panel, PCB Inspection
Data Storage and Communication
Image Storage Capacity Approx. 130,000 Images (8MP) Approx. 130,000 Images (8MP) Approx. 130,000 Images (8MP) Approx. 130,000 Images (8MP)
Annotations Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch
Video Storage Capacity MP4 video max. 420h; Radiometric video max. 72h MP4 video max. 420h; Radiometric video max. 72h MP4 video max. 500h; Radiometric video max. 38h MP4 video max. 500h; Radiometric video max. 38h
Video File Format MP4 video
and radiometric video		 MP4 video
and radiometric video		 MP4 video
and radiometric video		 MP4 video
and radiometric video
Image Format Radiometric JPEG Radiometric JPEG Radiometric JPEG Radiometric JPEG
Radiometric Infrared-Video Streaming (Compressed) Over UVC, Wi-Fi Over UVC, Wi-Fi Over UVC, Wi-Fi Over UVC, Wi-Fi
Extendable Memory Card Extendable 128 GB SD Card Extendable 128 GB SD Card Extendable 128 GB SD Card Extendable 128 GB SD Card
General
Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz) 802.11 b/g/n (2.4 GHz and 5 GHz) 802.11 b/g/n (2.4 GHz and 5 GHz) 802.11 b/g/n (2.4 GHz and 5 GHz)
Bluetooth Bluetooth 4.2 Bluetooth 4.2 Bluetooth 4.2 Bluetooth 4.2
USB Interface USB Type-C USB Type-C USB Type-C USB Type-C
HDMI Interface HDMI-D HDMI-D HDMI-D HDMI-D
Laser Pointer Yes Yes Yes Yes
Laser Yes, Class II, Wavelength: 635 nm; Power: < 1 mW Yes, Class II, Wavelength: 635 nm; Power: < 1 mW Yes, Class II, Wavelength: 635 nm; Power: < 1 mW Yes, Class II, Wavelength: 635 nm; Power: < 1 mW
LED Light Yes Yes Yes Yes
Laser Distance Meter Indoor distance: 50 m (164 ft);
Outdoor distance: 10 m (33 ft).		 Indoor distance: 50 m (164 ft);
Outdoor distance: 10 m (33 ft).		 Indoor distance: 50 m (164 ft);
Outdoor distance: 10 m (33 ft).		 Indoor distance: 50 m (164 ft);
Outdoor distance: 10 m (33 ft).
GPS & Compass Yes Yes Yes Yes
Battery Type Interchangeable and rechargeable Li-ion battery Interchangeable and rechargeable Li-ion battery Interchangeable and rechargeable Li-ion battery Interchangeable and rechargeable Li-ion battery
Battery Operating Time Approx. 4 hours Approx. 4 hours Approx. 4 hours Approx. 4 hours
Battery Charging Time Approx. 2.5 hours fully charged Approx. 2.5 hours fully charged Approx. 2.5 hours fully charged Approx. 2.5 hours fully charged
Power Saving Mode Yes Yes Yes Yes
Programmable Buttons 2 2 2 2
Protection Level IP54, IEC 60529 IP54, IEC 60529 IP54, IEC 60529 IP54, IEC 60529
Drop Test Height 1 m (3.28 ft), IEC 60068-2-31 1 m (3.28 ft), IEC 60068-2-31 1 m (3.28 ft), IEC 60068-2-31 1 m (3.28 ft), IEC 60068-2-31
Safety IEC 61010-1 IEC 61010-1 IEC 61010-1 IEC 61010-1
EMC EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1
Vibration 2 g, IEC 60068-2-6 2 g, IEC 60068-2-6 2 g, IEC 60068-2-6 2 g, IEC 60068-2-6
Shock 25 g, IEC 60068-2-27 25 g, IEC 60068-2-27 25 g, IEC 60068-2-27 25 g, IEC 60068-2-27
Working Temperature Range -20°C to 50°C ( -4°F to 122 °F) -20°C to 50°C ( -4°F to 122 °F) -20°C to 50°C ( -4°F to 122 °F) -20°C to 50°C ( -4°F to 122 °F)
Storage Temperature Range -20°C to 60°C ( -4°F to 140°F) -20°C to 60°C ( -4°F to 140°F) -20°C to 60°C ( -4°F to 140°F) -20°C to 60°C ( -4°F to 140°F)
Relative Humidity < 95% non-condensing < 95% non-condensing < 95% non-condensing < 95% non-condensing
Weight Approx. 1451 g (3.2 lb) Approx. 1451 g (3.2 lb) Approx. 1481 g (3.27 lb) Approx. 1481 g (3.27 lb)
Dimension 210.1 × 141.03 × 87.8 mm (8.27 × 5.55 × 3.45 in) 210.1 × 141.03 × 87.8 mm (8.27 × 5.55 × 3.45 in) 204.7 × 153.6 × 87.8 mm (8.06 × 6.05 × 3.45 in) 210.1 × 151.9 × 87.8 mm (8.27 × 5.98 × 3.45 in)
Tripod Mounting UNC ¼”-20 UNC ¼”-20 UNC ¼”-20 UNC ¼”-20
Warranty 3 years for the full product, 10 years for the detector, and 2 years for the battery. 3 years for the full product, 10 years for the detector, and 2 years for the battery. 3 years for the full product, 10 years for the detector, and 2 years for the battery. 3 years for the full product, 10 years for the detector, and 2 years for the battery.

เอกสารข้อมูลผลิตภัณฑ์

Download File : SP-Series_Flyer
