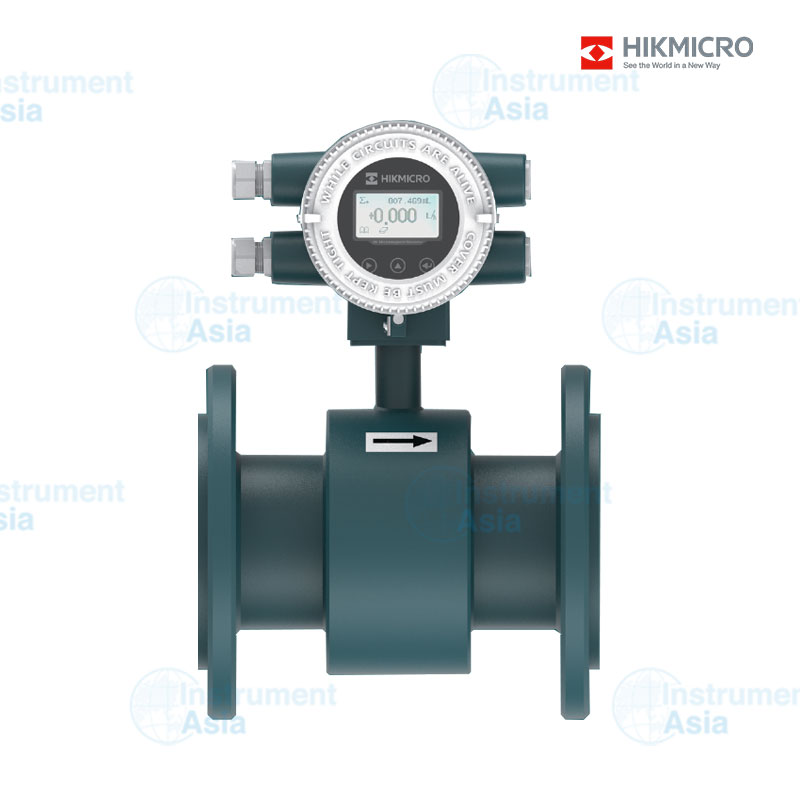

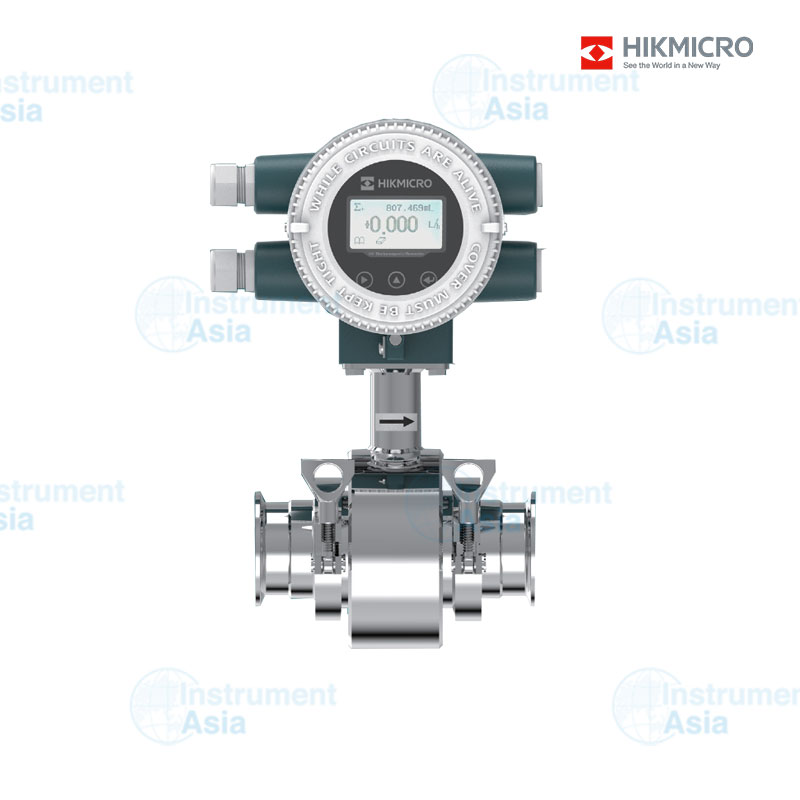

FE0 Series

HIKMICRO Electromagnetic Flow Meter. Flow rate measurement range from 0.01 to 12m/s and low conductivity of 1μS/cm with accuracy up to 0.3, 0.5 level.

FlowMeter
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0

Description

HIKMICRO FE0 series electromagnetic flow meter works based on Faraday‘s law of electromagnetic induction for measuring the flow rate of liquids. It is widely used in industries such as water management, chemical, medicine, life sciences, pulp & paper, food & beverages.

Benefits

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction
  • Good corrosion resistance and abrasion resistance with multiple selection of lining and electrodes
  • High accurate measurement, reaching ±0.3% of the indicated value
  • The transmitters are interchangeable and accuracy can be achieved without recalibration of the actual flow
  • Wide measuring range, up to 1000:1
  • High input impedance of the converter (>10 Ω), suitable for measuring low conductivity media ≥ 1μS/cm
  • Supports flow rate measurement from 0.01 to 12 m/s
  • Flexible sensor & transmitter styles to ensure compatibility in various application

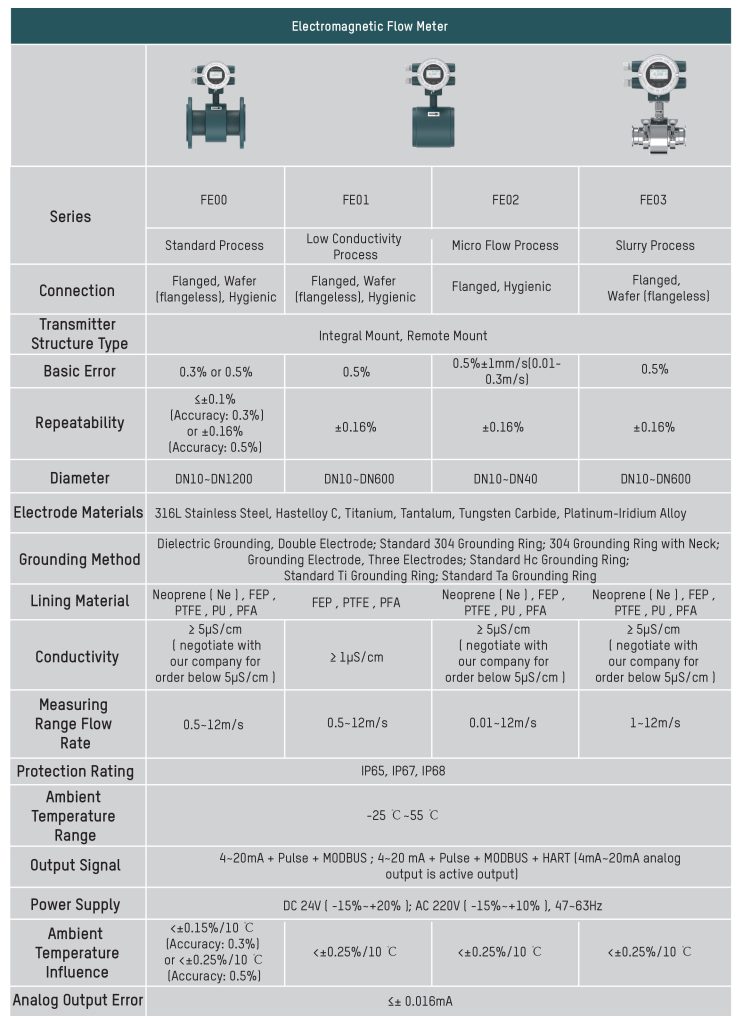

Series FE00 FE01 FE02 FE03
Standard Process Low Conductivity
Process		 Micro Flow Process Slurry Process
Connection Flanged, Wafer
(flangeless), Hygienic		 Flanged, Wafer
(flangeless), Hygienic		 Flanged, Hygienic Flanged,
Wafer (flangeless)
Transmitter
Structure Type		 Integral Mount, Remote Mount
Basic Error 0.3% or 0.5% 0.5% 0.5%±1mm/s(0.01-
0.3m/s)		 0.5%
Repeatability ≤±0.1%
(Accuracy: 0.3%)
or ±0.16%
(Accuracy: 0.5%)		 ±0.16% ±0.16% ±0.16%
Diameter DN10~DN1200 DN10~DN600 DN10~DN40 DN10~DN600
Electrode Materials 316L Stainless Steel, Hastelloy C, Titanium, Tantalum, Tungsten Carbide, Platinum-Iridium Alloy
Grounding Method Dielectric Grounding, Double Electrode; Standard 304 Grounding Ring; 304 Grounding Ring with Neck;
Grounding Electrode, Three Electrodes; Standard Hc Grounding Ring;
Standard Ti Grounding Ring; Standard Ta Grounding Ring
Lining Material Neoprene ( Ne ) , FEP ,
PTFE , PU , PFA		 FEP , PTFE , PFA Neoprene ( Ne ) , FEP ,
PTFE , PU , PFA		 Neoprene ( Ne ) , FEP ,
PTFE , PU , PFA
Conductivity ≥ 5μS/cm
( negotiate with
our company for
order below 5μS/cm )		 ≥ 1μS/cm ≥ 5μS/cm
( negotiate with
our company for
order below 5μS/cm )		 ≥ 5μS/cm
( negotiate with
our company for
order below 5μS/cm )
Measuring
Range Flow
Rate		 0.5~12m/s 0.5~12m/s 0.01~12m/s 1~12m/s
Protection Rating IP65, IP67, IP68
Ambient
Temperature
Range		 -25 ℃~55 ℃
Output Signal 4~20mA + Pulse + MODBUS ; 4~20 mA + Pulse + MODBUS + HART (4mA~20mA analog
output is active output)
Power Supply DC 24V ( -15%~+20% ); AC 220V ( -15%~+10% ), 47~63Hz
mbient
Temperature
Influence		 <±0.15%/10 ℃
(Accuracy: 0.3%)
or <±0.25%/10 ℃
(Accuracy: 0.5		 <±0.25%/10 ℃ <±0.25%/10 ℃ <±0.25%/10 ℃
Analog Output Error ≤± 0.016mA
