PS2 & PD2 Series Pyrometer

Compact in size and wide temperature measurement range from 150℃ to 3200℃ with accuracy up to ± (0.3 % +1)℃

มีสินค้าในสต๊อก
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0

คำอธิบาย

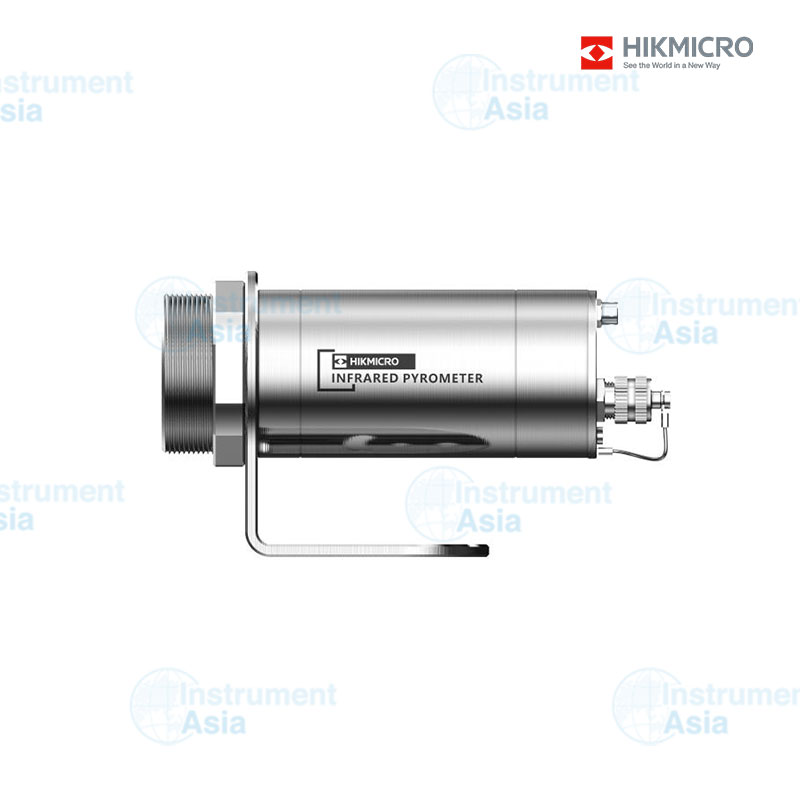

HIKMICRO PS2 & PD2 Series Compact Pyrometer
Compact in size and wide temperature measurement range from 150℃ to 3200℃ with accuracy up to ± (0.3 % +1)℃

Product Model
PD230
Measurement Specifications
Spectral Response
0.8μm ~ 1.08μm
 0.8μm ~ 1.08μm 0.8μm ~ 1.08μm 1.3μm ~ 1.7μm 0.8μm ~ 1.08μm
Temperature Range
500℃~1800℃(932°F~3272°F)
 700℃~3200℃(1292°F~5792°F) 600℃~1800℃(1112°F~3272°F) 300℃~1600℃(572°F~2912°F) 700℃~3200℃(1292°F~5792°F)
Accuracy
600-1800℃：± (0.3%*Tmea+2) ℃ /1112-3272℉：± (0.3%*Tmea+3.6) ℉, 500-600℃：± (2%*Tmea+2) ℃/932-1112℉：± (1%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
± (0.3%*Tmea+2) ℃ /± (0.3%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
± (0.5%*Tmea+2) ℃ /± (0.5%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
400-1600℃：± (0.5%*Tmea+2) ℃ /752-2912℉：± (0.5%*Tmea+3.6) ℉, 300-400℃：± (2%*Tmea+2) ℃/572-752℉：± (2%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
± (0.5%*Tmea+2) ℃ /± (0.5%*Tmea+3.6) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
Resolution
0.1℃/0.18°F
0.1℃/0.18°F
0.1℃/0.18°F
0.1℃/0.18°F
0.1℃/0.18°F
Repeatability
600-1800℃：± (0.1%*Tmea+1) ℃ / 1112-3272℉：± (0.1%*Tmea+1.8) ℉ , 500-600℃：± (1%*Tmea+1) ℃ / 932-1112℉：± (1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
± (0.1%*Tmea+1) ℃ /1± (0.1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
± (0.3%*Tmea+1) ℃ /± (0.3%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
400-1600℃：± (0.3%*Tmea+1) ℃ / 752-2912℉：± (0.3%*Tmea+1.8) ℉ , 300-400℃：± (1%*Tmea+1) ℃ / 572-752℉：± (1%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
± (0.3%*Tmea+1) ℃ /± (0.3%*Tmea+1.8) ℉ *At ambient temperature 23 ± 5°C *ε=1; response time 100 ms; no attenuation *Tmea means "Current measured temperature"
Optical Resolution (D:S)
100:1 (90% energy)
200:1 (90% energy)
 100:1 (95% energy) 100:1 (90% energy) 200:1(95% energy)
Spot Size 3mm
1.5mm
 3mm 3mm
1.5mm
Response Time 10ms 10ms 10ms 10ms 10ms
Slope
0.850～1.150
 0.850～1.150 0.850～1.150
Emissivity 0.100～1.100 0.100～1.100 0.100～1.100 0.100～1.100 0.100～1.100
Sighting Visual display Visual display Visual display Visual display Visual display
Signal Processing Averaging mode, temperature filter mode, peak/valley hold mode Averaging mode, temperature filter mode, peak/valley hold mode Averaging mode, temperature filter mode, peak/valley hold mode Averaging mode, temperature filter mode, peak/valley hold mode Averaging mode, temperature filter mode, peak/valley hold mode
Focus Range 0.3m~INF 0.3m~INF 0.3m~INF 0.3m~INF 0.3m~INF
Visual
Field of View (FOV)
 7° x 5.5° 7° x 5.5° 7° x 5.5° 7° x 5.5° 7° x 5.5°
Optical Resolution 1728*1296 1728*1296 1728*1296 1728*1296 1728*1296
Data Communication
Analog Output
 Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA Supports proportional output, 16-bit resolution, max load 600Ω - Interface: 4-20mA - Output Types: 4-20mA/0-20mA
Digital Output RS485, Modbus RTU, Modbus TCP, I/O RS485, Modbus RTU, Modbus TCP, I/O RS485, Modbus RTU, Modbus TCP, I/O RS485, Modbus RTU, Modbus TCP, I/O RS485, Modbus RTU, Modbus TCP, I/O
Alarm Output Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm Support temperature alarm, ambient temperature alarm, dirt alarm, FSMC alarm, 4-20mA alarm, relay alarm, I/O alarm
Protocols TCP/IP TCP/IP TCP/IP TCP/IP TCP/IP
General
Power Consumption Max 5W Max 5W Max 5W Max 5W Max 5W
Protection Level IP66 IP66 IP66 IP66 IP66
Vibration 1 g, IEC 60068-2-6 1 g, IEC 60068-2-6 1 g, IEC 60068-2-6 1 g, IEC 60068-2-6 1 g, IEC 60068-2-6
Shock 15 g, IEC 60068-2-27 15 g, IEC 60068-2-27 15 g, IEC 60068-2-27 15 g, IEC 60068-2-27 15 g, IEC 60068-2-27
Working Temperature Range - Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F) - Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F) - Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F) - Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F) - Without cooling: 0°C to +65°C (32°F to +149°F) - With air & water cooling accessories: 0°C to +300°C (32°F to +572°F)
Storage Temperature Range -20℃ to 70℃ (-4°F to +158°F) -20℃ to 70℃ (-4°F to +158°F) -20℃ to 70℃ (-4°F to +158°F) -20℃ to 70℃ (-4°F to +158°F) -20℃ to 70℃ (-4°F to +158°F)
Relative Humidity ＜95% non-condensing ＜95% non-condensing ＜95% non-condensing ＜95% non-condensing ＜95% non-condensing
Weight 680g(1.5 lb) 680g(1.5 lb) 680g(1.5 lb) 680g(1.5 lb) 680g(1.5 lb)
Dimension φ52.4 x 148.7mm（φ2.06 x 5.85in） φ52.4 x 148.7mm（φ2.06 x 5.85in） φ52.4 x 148.7mm（φ2.06 x 5.85in） φ52.4 x 148.7mm（φ2.06 x 5.85in） φ52.4 x 148.7mm（φ2.06 x 5.85in）
Power Supply DC 10~30V DC 10~30V DC 10~30V DC 10~30V DC 10~30V
Warranty 5 years for the full product 5 years for the full product 5 years for the full product 5 years for the full product 5 years for the full product
Display
OLCD screen, resolution 128*32
 OLCD screen, resolution 128*32 OLCD screen, resolution 128*32 OLCD screen, resolution 128*32 OLCD screen, resolution 128*32
Laser No No No No No
